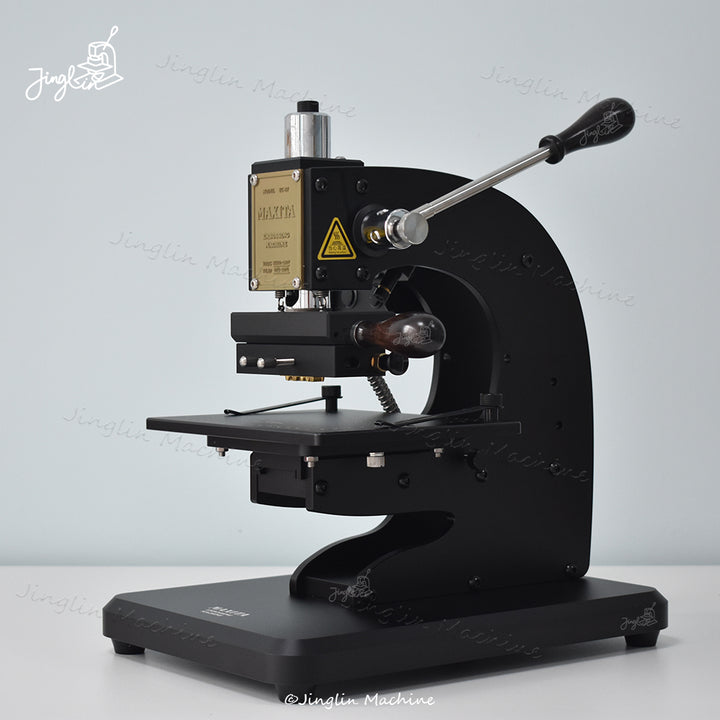

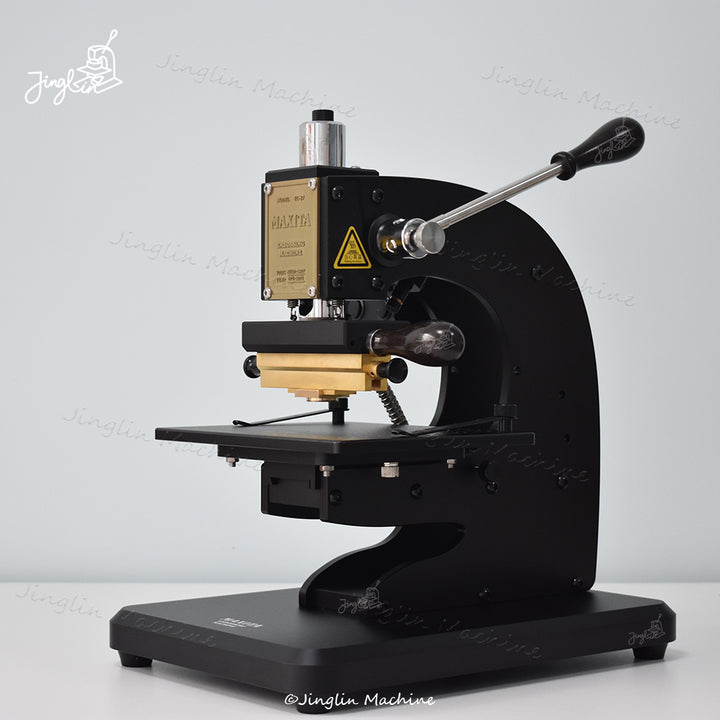

The Maxita Ec‑27 Is a High-Performance Hot Foil Stamping Machine Designed for Precise Stamping on a Variety of Materials—now Bundled with a Custom-Engineered Metal Base for Enhanced Stability and Stamping Accuracy.
Upgraded with a Larger Sliding Worktable and Equipped with a High-Performance Omron Temperature Control System, The Ec‑27 Delivers Consistent Heat and Stable Performance. A Built-In Red Laser Positioning System Ensures Accurate Alignment for Cleaner, Sharper Results. The Sliding Platform Allows for Fast Material Loading and Unloading, While Multiple Interchangeable Brackets Support a Wide Range of Tooling for Different Production Needs.

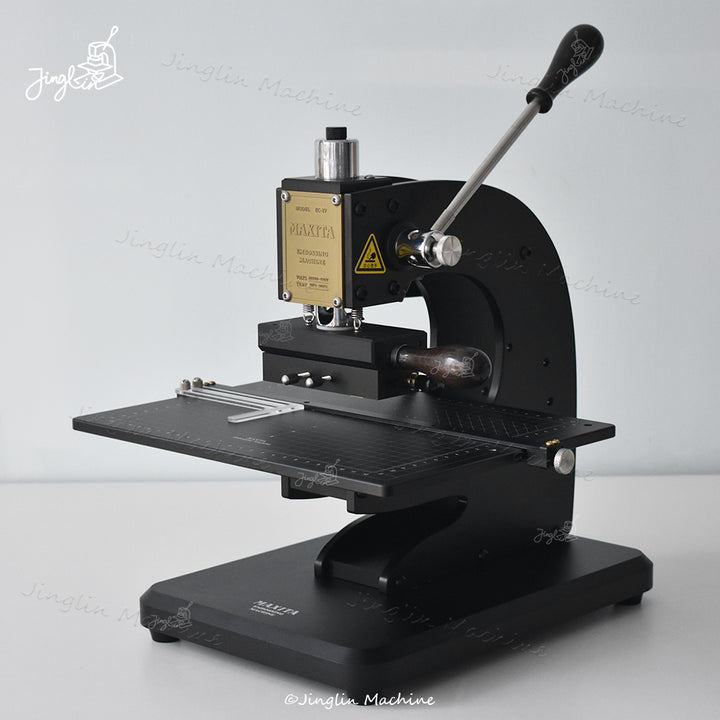

Paired with a Solid Aluminum Metal Base, This Combo Offers Greater Operational Stability and Precision. Cnc-Machined from High-Strength Aluminum Alloy, The Base Reduces Vibration and Ensures Uniform Pressure During Stamping—ideal for Professional-Grade Results.
Overall Dimensions: 9” x 13” x 13.5” (23 cm x 33 cm x 35 cm)
Sliding platform: 7.75" x 5.875" (20 cm x 15 cm)
Weight: 14 kg - 16 kg
Voltage: 110v (USA Plug) or 220v (Euro and UK Plug Both Included)

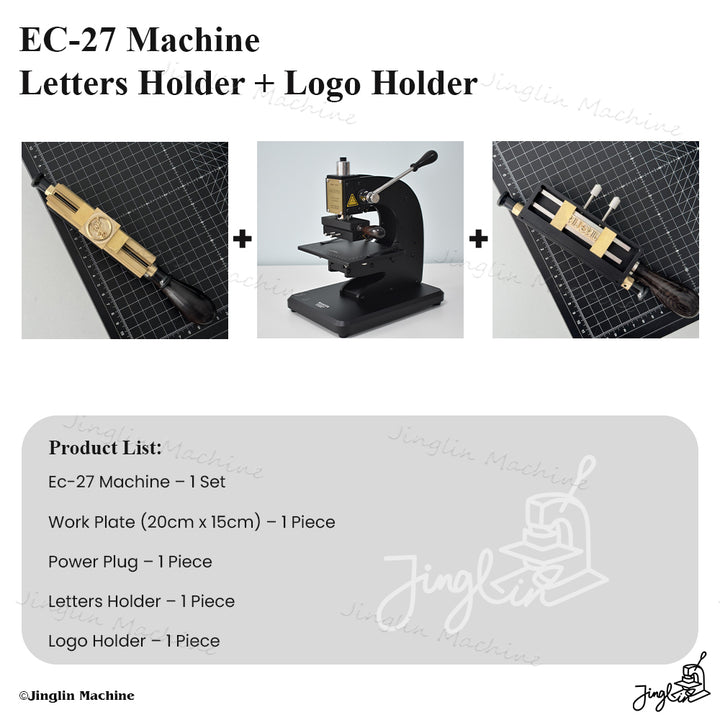

- EC-27 Hot Foil Stamp Body with Laser Attachment.
- Stamping Platform Guide.
- Power Cable (Type Varies Based on Shipping Address).
- One Stamp Holder (Select Your Preferred Version).
- English Instruction Manual
Shipping Policy
We Offer Worldwide Shipping.
Once Your Payment Is Confirmed, We Will Begin Processing Your Order. For Custom Products, Production Time May Vary Depending on the Complexity of Your Order. Shipping Times Will Also Depend on Your Location and the Selected Shipping Method. Once Your Order Has Been Shipped, A Tracking Number Will Be Provided via Email.
Please Ensure Your Shipping Information Is Accurate to Avoid Delays or Delivery Issues.
Return Policy
Thank You for Choosing Jinglin! We Are Committed to Providing High-Quality Products. Please Ensure You Are Confident in Your Product Choice Before Purchasing. Below Is Our Return Policy:
Custom Product Returns
Our Custom Brass Molds and Hot Stamping Machines Are Made to Order Based on Specific Customer Requirements. As Such, We Do Not Accept Returns Without Reason. If Your Custom Product Has Quality Issues or Does Not Match Your Order, Please Contact Us Immediately—we're Here to Help.
Quality Issues or Defects
If You Receive a Product with a Manufacturing Defect or Damage, Please Contact Us Within 7 Business Days of Receiving Your Goods. Don’t Worry—we Will Provide a Solution Based on the Specific Situation.
Important Notice
Please Note That Once Production of Custom Products Has Begun, We Do Not Accept Returns Without Reason. Ensure All Product Specifications and Requirements Are Confirmed Before Placing Your Order.
Thank You for Your Understanding and Support!
If You Have Any Questions or Concerns, Please Don’t Hesitate to Reach out to Us At:
Lucy@jinglinmachine.com
Your Satisfaction Is of the Utmost Importance to Us!
1. What's the difference between the EC-17 and EC-27?
Portability:
The biggest difference is portability. The EC-17 is smaller and lighter, with a weight difference of around 6-9kg depending on the base material:
- EC-17 (Walnut base): 6.7kg (without packaging)
- EC-27 (Walnut base): 14kg | Metal base: 16kg (without packaging)
Work Surface:
The EC-17 has a 15cm x 15cm work surface, which is more suitable for handling small, flat pieces. The EC-27, on the other hand, features a 16cm x 20cm suspended work surface, allowing for hot stamping on bags of various sizes. You can check out this video for more details.
Temperature Control System:
The EC-17 is equipped with a temperature control system from Autonics, while the EC-27 uses Omron’s system. Both systems are reliable and stable, but if you plan on running the machine for long hours, the EC-27 would be a better fit.
2. Can it be used with die cuts?
No, this machine is not designed for pressing die cuts.
3. Can I use other companies' typesets with the machine?
Letters Holder :
Letters holder supports custom copper molds up to 2.4x7.7cm. If your typeset falls within this range, it should be compatible. Holder 1 offers better compatibility, but it has its limitations. The mold is aligned at the bottom edge, and while it automatically centers horizontally, you will need to spend more time adjusting the vertical position depending on the copper mold to find the right stamping spot.
Logo Holder :
Logo holder accommodates custom molds from 0 to 6x8cm and supports single-row typesets, though it is only compatible with MAXITA typesets.
If you’re looking for both flexibility and compatibility, most of our customers find it helpful to use both Letters holder and Logo holder together. For more details, you can check out this video explaining the two holders.
4. Can it stay on for extended periods?
Absolutely! This machine has a highly stable temperature controller and fuse, making it easy to run continuously for about 10 hours. You won’t need to turn it off between projects.
5. What’s the ideal temperature to use?
While the maximum temperature is 200°C, most users find that 110-120°C works as a universal setting for various materials. For best results, we recommend doing a quick test before starting your final project.
6. How long should I press for each impression?
Generally, 2-3 seconds does the trick!
